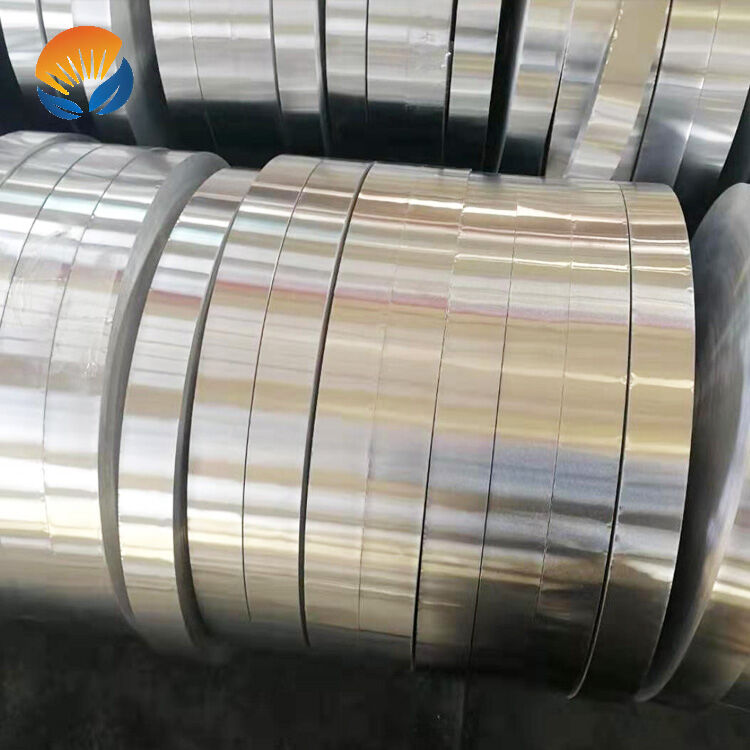

4032 Aluminum Strip

Product description:

Aluminum strip are widely used in electronics, packaging, construction, machinery, and other fields. There are many aluminum strip production enterprises in China, and the production process has caught up with developed countries. According to the different metal elements contained in aluminum coils

Product Details

Chemical Composition

Mechanical Behavior

Item	Aluminum Strip
Standard	GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
Size	Thickness	0.5-200mm
	Width	100-2000mm
	Length	2000mm,2440mm,6000mm,or as required.
Quality control	Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Surface	Bright,polished,hair line,brush,sand blast,checkered,embossed,etching,etc

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6
