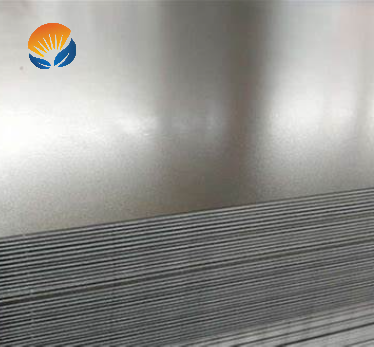

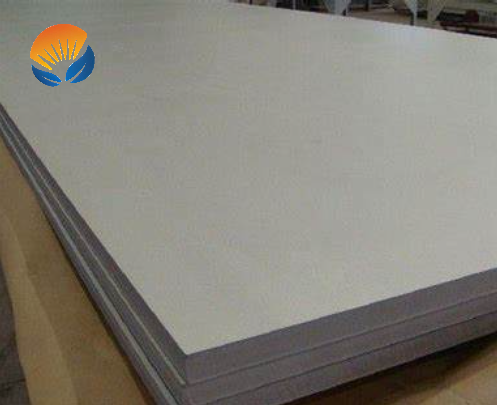

309S Stainless Steel Plate/Sheet

Product description:

Length：1-12m or as required
Width ：600-35000mm
Thickness ：0.4mm-320mm or as required
Design Style : Customizable
Delivery Time : 7-10Days
Learn more about Stainless Steel Plate/Sheet
E-mail: petra@jrhss.com
86 13306166189
Get A Quote
Product Details
Chemical Composition
Mechanical Behavior

product details

309S is an austenitic chromium-nickel stainless steel commonly used in high temperature applications. The high chromium and nickel content of 309S give it good corrosion resistance, while the low carbon content helps prevent carbide precipitation during welding. This makes 309S an ideal choice for many furnace and boiler applications.


 Item Name   Stainless Steel Plate
 Size customized Special specifications can also be produced according todrawing and sample
 Si Content (%) standard level
 C Content (%) standard level
 Length As per requirement
 Color Silver,black wither bright
 Quality Top
 Certification ISO9001
 Application wire-drawing, weaving of wire mesh, soft pipe, bean of cabinet, steel wire,etc.
 Packing Exportsea worthy packing with each bundle tied and protected, Or as to clients' requirements.
 Price Negotiable


chemical properties


Carbon C: ≤0.08


Manganese Mn: ≤2.00

Silicon Si: ≤1.00

Chromium Cr: 22.0-24.0

Nickel Ni: 12.0-15.0

Phosphorus P: ≤0.045

Sulfur S: ≤0.030

Nitrogen N: 0.10~0.16


mechanical property

The mechanical properties of 309S stainless steel are as follows:

Yield strength: ≧205

Tensile strength: ≧520

Elongation after breaking: ≧40

Hv:≦200

Density 7.89G/cm³

Melting point: 1480-1530 degrees Celsius

Annealing temperature: 1000-1150 degrees Celsius




GradeCSiMnPSNiCrMo
201≤0 .15≤0 .755. 5-7. 5≤0.06≤ 0.033.5 -5.516 .0 -18.0-
202≤0 .15≤l.07.5-10.0≤0.06≤ 0.034.0-6.017.0-19.0-
301≤0 .15≤l.0≤2.0≤0.045≤ 0.036.0-8.016.0-18.0-
302≤0 .15≤1.0≤2.0≤0.035≤ 0.038.0-10.017.0-19.0-
304≤0 .0.08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0-
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0-
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0-
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0 - 15.016 .0 -1 8.02.0 -
321≤ 0 .08≤1.0≤2.0≤0.035≤ 0.039.0 - 13 .017.0 -1 9.0-
630≤ 0 .07≤1.0≤1.0≤0.035≤ 0.033.0-5.015.5-17.5-
631≤0.09≤1.0≤1.0≤0.030≤0.0356.50-7.7516.0-18.0-
904L≤ 2 .0≤0.045≤1.0≤0.035-23.0·28.019.0-23.04.0-5.0
2205≤0.03≤1.0≤2.0≤0.030≤0.024.5-6.522.0-23.03.0-3.5
2507≤0.03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.03.0-5.0
2520≤0.08≤1.5≤2.0≤0.045≤ 0.030.19 -0. 220. 24 -0 . 26-
410≤0.15≤1.0≤1.0≤0.035≤ 0.03-11.5-13.5-
430≤0.1 2≤0.75≤1.0≤ 0.040≤ 0.03≤0.6016.0 -18.0-
GradeStateHardness HVYield StrengthTensile StrengthElongation(%)
SUS304ANN<200>205>520>40
1/4H200-250>255>550>35
1/2H250-310>470>780>6
3/4H310-370>665>930>3
H370-430>880>1130--
SUS301ANN<250>205>520>40
1/4H250-310>470>780>35
1/2H310-370>510>930>10
3/4H370-430>745>1130>5
H430-490>1030>1320>3
EH490-550>1275>1570--
SH>550>1500>1850--
SUS201ANN<200>205>515>40
1/4H200-250>250>550>35
1/2H250-310>470>780>6
3/4H310-370>665>930>3
H370-430>880>1130--
SUS430ANN<200>205>450>22
1/2H200-250>330>505>10
H250-310>420>750>6
SUS443ANN<200>305>483>31
SUS310S≤200<200>205>520>40
SUS316L≤200<200>310>620>40
